Konrad Zuse and the Z3

Abstract

In May 1941, a 30-year-old Berlin engineer presented to a small group of experts a machine consisting of 2,600 telephone relays that performed floating-point arithmetic in binary. It read its instructions from punched 35 mm film strips and was freely programmable, without any physical rewiring. Konrad Zuse’s Z3 was the world’s first working Turing-complete computer. Anglo-American computing history largely ignored it for decades, because it had been built on the wrong side of the war.

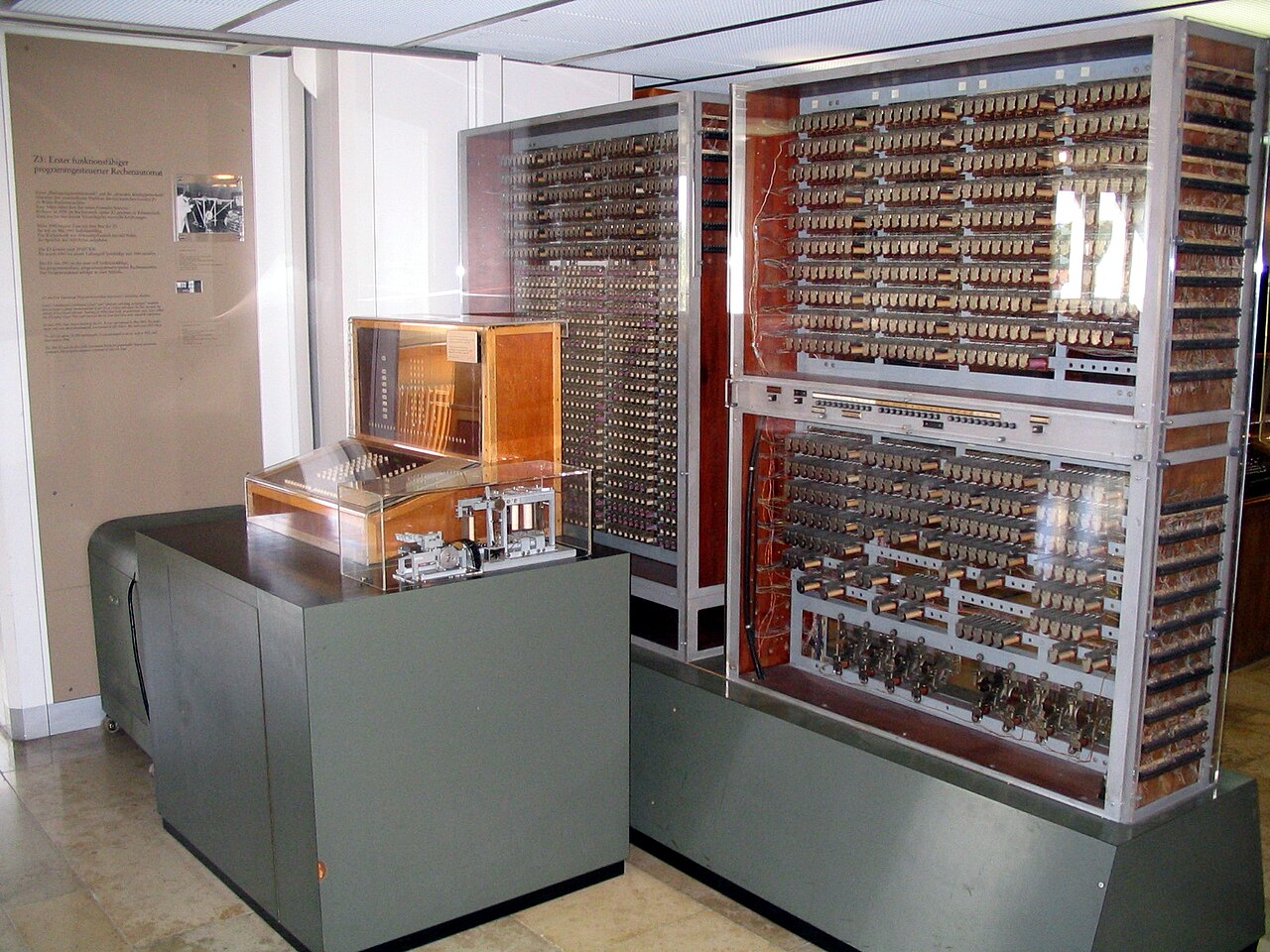

Z3 replica in the Deutsches Museum, Munich. Image: Venusianer, CC BY-SA 3.0, via Wikimedia Commons.

The Engineer Who Hated Calculating

Konrad Zuse was born in Berlin in 1910 and studied civil engineering at the Technische Hochschule Berlin-Charlottenburg. As an engineer he faced the same problem daily: structural calculations for aircraft parts, endless columns of numbers to be worked through page by page by hand. Zuse was not lazy, but he thought in terms of efficiency: this work, he realized, was mechanical enough to be done by a machine.

He quit his job at the Henschel aircraft works in 1935 and began building in his parents’ Berlin apartment. His budget was minimal; his supporters were friends who helped as assistants; no institution offered funding for a universal calculating machine.

The Z1: Computing from Metal Plates

From 1936 to 1938, Zuse built the Z1 in his parents’ living room, a fully mechanical calculating machine made not of electronics but of thin metal plates he cut himself. The machine:

Operated in binary with floating-point representation, both decisions extraordinary for the time and developed independently by Zuse
Had a 16-word memory
Read instructions from punched celluloid film (repurposed sections of movie film)
Was in principle freely programmable

In practice the Z1 ran unreliably. The mechanical tolerances were too tight for hand-cut metal parts; the smallest contamination or temperature fluctuation jammed the logic gates. The Z1 computed, sometimes. But it proved to Zuse that the concept was right.

The Z3

For the successor, Zuse changed the medium. The Z2 (1940) tested telephone relays for the arithmetic unit: electrical switches that opened and closed reliably and thus enabled reliable logical operations. The experience flowed into the main work.

It could have gone differently: Zuse’s friend and collaborator Helmut Schreyer, a communications engineer at the TH Berlin, pushed for vacuum tubes instead of relays: electronic circuits, a thousand times faster. Zuse stayed with proven relay technology; Schreyer’s proposal for an electronic computer with 2,000 tubes was dismissed by the experts in 1938 as “fantasy” and later rejected by the military, because the war was expected to be won before the machine could be finished.

On May 12, 1941, in his workshop at Methfesselstraße 7 in Berlin-Kreuzberg, a building later destroyed in the bombing, Zuse presented the Z3 to a small group of experts, among them Alfred Teichmann of the German aviation research institute, who mentioned Zuse by name in articles of 1941 and 1942. The machine consisted of:

2,600 telephone relays in total: 1,400 for the memory, the rest for the arithmetic and control units
A 22-bit floating-point format: 1 sign bit, 7 exponent bits, 14 bits of mantissa, a structure strikingly close to modern IEEE 754 floating-point numbers

Info

Zuse’s 22-bit floating-point number as an early number format: The Z3 used a binary floating-point representation for which Zuse independently developed the concepts of sign, exponent, and mantissa. The IEEE 754 standard, which unified floating-point arithmetic for all modern processors in 1985, follows the same basic structure, just with more bits (32 or 64 instead of 22). Zuse had solved the logical architecture of a problem for which the hardware world created a global standard only four decades later.

The Z3 worked in parallel: all 22 bits of a word were read from memory simultaneously, not one after another. It could add, subtract, multiply, divide, and take square roots. The clock rate was about 5–10 Hz; an addition took about 0.8 seconds, a multiplication about 3 seconds.

Programming was done via punched film strips: Zuse used 35 mm movie film and punched in the instruction patterns. Programs could be executed as loops by gluing the film strip into a loop. Conditional jumps (IF statements) were missing from the Z3; they were implemented only in later machines.

Whether the Z3 was nevertheless Turing-complete without conditional jumps remained disputed for a long time. In 1998, the computer scientist Raúl Rojas of the Freie Universität Berlin proved that through clever programming with loops the Z3 could still compute any computable function, a retroactive proof that Zuse’s machine was theoretically universal.

From 1940 the work was partly state-funded: after a demonstration of the Z2, the Deutsche Versuchsanstalt für Luftfahrt (DVL) paid for part of the Z3, and for the Henschel works he built the special-purpose computers S1 and S2, which calculated aerodynamic corrections for the wings of radio-guided glide bombs; the S2 is considered an early process control computer. Zuse was never a member of the NSDAP, but his work was commissioned and paid for by the armaments effort. How to judge his relationship to the Nazi regime is still debated in the literature.

Plankalkül: The First Programming Language

Zuse’s interest in machines that handled information went back to his school years in Hoyerswerda, where he drew a picture story about an inventor, “Fritze Schlaumeyer.” His notebooks show him thinking beyond arithmetic. In 1938 he sketched a “Nachrichtengerät” that stored and recombined passages of text, a word processor on paper; in the winter of 1939/40, as a newly drafted infantryman in the Eifel, he considered applying his machines to encryption.

Between 1942 and 1945, when Zuse had no way of building new hardware, he worked on something theoretical: a programming language for machines like the Z3.

The Plankalkül (calculus of plans) was the first concept of a high-level programming language ever. It included:

Floating-point arithmetic as a data type
Subroutines
Conditional execution and loops
Structured data (arrays, records)
A concept of formal verification: Zuse proposed proving programs mathematically correct

As a demonstration, Zuse wrote a complete chess program in Plankalkül: 49 pages of algorithms for position evaluation and move calculation. It was the first chess program in history, years before Alan Turing and Claude Shannon developed similar ideas.

The manuscript was finished in 1945. Zuse could not submit it: Germany was collapsing. He published a summary in the Archiv der Mathematik in 1948, which attracted little attention; the full manuscript appeared only in 1972, with commentary. A first compiler for Plankalkül appeared in Joachim Hohmann’s 1975 dissertation; the Freie Universität Berlin built another implementation in 2000, 55 years after the language was completed.

The Z4 Survives the War

The Z3 itself did not survive the war. At the end of 1943, a British bombing raid destroyed Zuse’s workshop in Berlin. The Z3 burned. Zuse continued work on the Z4, an improved version with a mechanical memory.

In February 1945, with Berlin under devastating air attack, Zuse had the unfinished Z4 loaded onto a truck. The machine left Berlin for Göttingen, then for the Bavarian village of Hinterstein, where Zuse hid it and waited out the end of the war.

In 1949, Zuse showed the Z4 to the Swiss mathematician Eduard Stiefel of ETH Zurich. Stiefel recognized the machine’s value immediately. In 1950, the Z4 was delivered to ETH Zurich, for a fee of 30,000 Swiss francs over five years.

At that point the Z4 was the only working digital computer in central Europe and only the second computer ever to be rented or sold. At ETH it was used for aerodynamic and numerical calculations until 1955. The Americans were interested too: files in the US National Archives from 1949 to 1954 record that the Air Force offered the “German specialist Konrad ZUSE” the post of chief scientist in the computer branch of its Office of Air Research in August 1949 under Operation Paperclip, and that an Air Force intelligence officer and a Navy mathematician visited his workshop in Neukirchen in spring 1950. Zuse stayed. A file on him from 1945 in the military archive of the Bundesarchiv in Freiburg, kept by the army ordnance office, holds the draft of a doctoral thesis he never completed and photographs of the V4, the machine later called Z4. His ideas meanwhile ran ahead of his means: a logic machine that derived conclusions by propositional calculus, filed as an Austrian patent on 2 April 1947 and granted in 1952; a design for a small programmable office machine in 1948 that was never built; and a 1950 patent application for a computer working with Plankalkül.

The Zuse KG

On 1 August 1949, Zuse founded the Zuse KG with two partners in Neukirchen in the Hünfeld district (from 1957 in Bad Hersfeld), Germany’s first computer company. By 1969 the firm had delivered 251 computers, among them the series-produced relay machine Z11 for surveying and the optics industry, and the Z22, the company’s first vacuum-tube computer with magnetic drum memory, of which 55 units went mostly to universities. The Z5 for the optical firm Ernst Leitz in Wetzlar, with 2,200 relays, 36-bit floating-point numbers, subroutines and conditional jumps, left Neukirchen on 7 July 1953 and ran in Wetzlar from August 1953 until 1958; at the time it and Heinz Billing’s G1 were the only working digital computers in West Germany. The relay-based Z11, the first series machine, went to Carl Zeiss in Oberkochen and the Agfa camera works in Munich in 1956, and almost fifty were built. A Z23 delivered to the University of Erlangen in 1962 was restored and restarted there on 4 March 2015; the Z 80 of 1960 was an electronic planimeter that measured areas on paper and punched the values on tape. In the first half of 1956 Zuse filed five patents for “array computers” that processed whole fields of numbers on a magnetic drum, presented in Madrid in 1958 and never built. By his own account, Zuse was never a businessman: the company repeatedly ran into financial difficulties. In 1964 Brown, Boveri & Cie took control, in 1967 Siemens bought 70 percent (Zuse left the company the same year), in 1969 the rest. In early April 1971 the company name was struck from the register.

Dead End: Isolation and the Missed History

Zuse’s work carries a double tragedy: the machines ran; the recognition did not come.

The isolation of the war was the first factor. While Zuse worked on the Z3 in Berlin, Atanasoff and Berry in Iowa developed their ABC (1939–1942), Turing and the team at Bletchley Park built Colossus (1943–1944), and Eckert/Mauchly developed ENIAC in Philadelphia (1943–1945). All these developments proceeded without knowledge of one another, and after the war the Anglo-American perspective dominated the historiography. Zuse’s work was in German, unpublished, and in a defeated country.

The Plankalkül came too early and too quietly. The 1948 summary predated FORTRAN (1957), LISP (1958) and ALGOL (1958) by a decade, but few read it. Heinz Rutishauser later called it “the very first attempt to devise an algorithmic language,” and at the ALGOL 58 meeting the European delegates proposed Zuse’s assignment arrow, which the Americans voted down in favour of :=. By the time the full text appeared in 1972, the main language families were established.

The patent was denied him as well. Zuse had filed the Z3 circuit design for a patent in 1941; the application was published in 1952, and Triumph, later joined by IBM, filed oppositions (see Percy Ludgate). In 1967 the Federal Patent Court finally ruled against granting it, on the grounds of “insufficient inventive step”. The inventor of the computer never held a patent on his central invention; of his 58 patent applications, eight were granted in total.

The priority dispute burdens computing history to this day. The questions (who built the first computer?) cannot be answered cleanly, because “first computer” has no unambiguous definition. The Z3 is the first freely programmable, Turing-complete, binary floating-point computer. The ABC was binary and electronic, but not freely programmable. Colossus was electronic and fast, but specialized for one task. ENIAC was electronic and universal, but originally decimal and not stored-program.

Zuse received the recognition he deserved too late. Honors did come: the Werner von Siemens Ring in 1964, the Harry H. Goode Memorial Award of the American computing society in 1965, the Great Federal Cross of Merit in 1973 (with star in 1985), induction as a Fellow of the Computer History Museum in 1999. In retirement he speculated and painted. His 1967 article and 1969 book Rechnender Raum (“Calculating Space”) proposed that the universe is a cellular automaton in which elementary particles are patterns of digital information, an early statement of digital physics; from 1969 to 1974 he worked on a self-reproducing assembly line, SRS 72, meant to build ever smaller copies of itself; and in 1968 he wrote Die Uhr tickt, a 300-page reflection on the present and the future. He had lectured on computers for graphics and the applied arts as early as 23 January 1964, and in 1981 he wrote a long report on the VDI’s Berlin exhibition on the aesthetics of technology, “Die Nützlichen Künste.” He became friends with Heinz Nixdorf after they met in Paderborn in December 1975. He painted over 500 pictures, some signed with the pseudonym “Kuno See”; in 2012 documenta 13 in Kassel exhibited his works. He died in Hünfeld on 18 December 1995, long enough to see his priority acknowledged; Hoyerswerda, where he had attended school from 1923 to 1928, made him an honorary citizen that year, and its Zuse-Computer-Museum (ZCOM) reopened in a new building in January 2017. His papers went to the Deutsches Museum in 2006 and are online as the Konrad Zuse Internet Archive; the guest book he kept from 1940 to 1988 is among them. But the textbooks, the algorithms, the university courses: they route the history of computer science through Turing and von Neumann, through ENIAC and the Manchester Baby. Zuse appears as a footnote.

The keeper of the record became his eldest son. Horst Zuse (born 17 November 1945 in the Allgäu), a computer scientist at the Technische Universität Berlin, wrote the standard technical accounts of his father’s machines and, for the centenary of Konrad Zuse’s birth in 2010, built a working Z3 replica from modern relays. (An earlier replica, built by the Zuse KG itself in 1961, is in the Deutsches Museum in Munich.) It stands in the Konrad-Zuse-Museum in Hünfeld, the town where the Zuse KG once built its computers.
