The Storage Revolution: From Magnetic Tape to Silicon

Abstract

The history of data storage is a story of relentless compression, not just of physical size, but of access time, cost per byte, and the architectural assumptions that shaped operating systems, databases, and software design for decades. From magnetic drums and punched cards to spinning hard disks and flash-based NVMe drives, each storage generation did not merely replace the last; it redefined what software could assume about persistence.

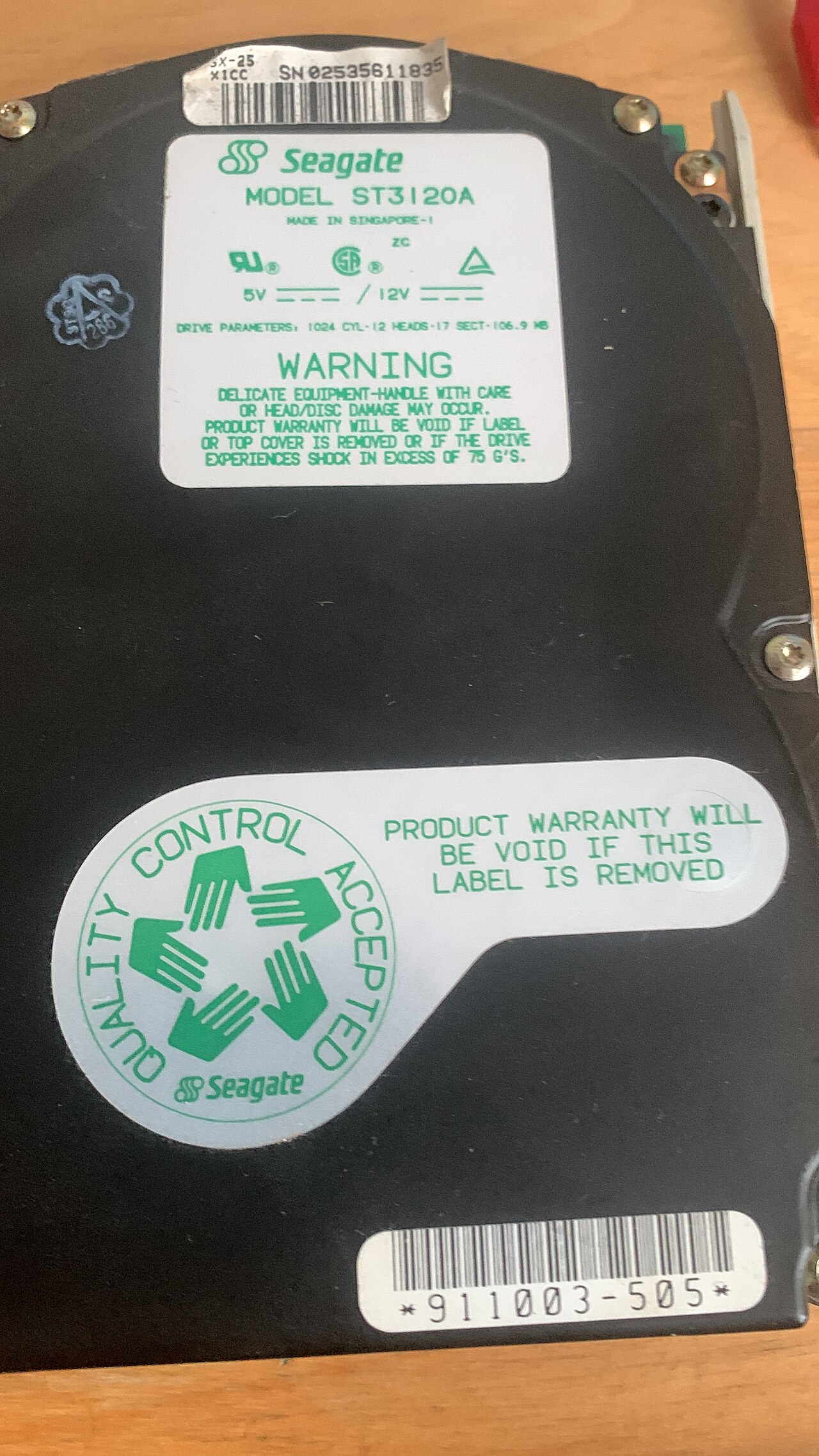

An early 1990s hard disk drive. Image: CodeMaximus XT, CC0, via Wikimedia Commons.

The Age of Magnetic Tape and Drums (1940s–1960s)

Magnetic drum memory built by Engineering Research Associates, at the Computer History Museum. Image: Marcin Wichary, CC BY 2.0, via Wikimedia Commons.

Early computers had no persistent storage in the modern sense. Programs were loaded by toggling switches or feeding punched cards. The first form of reusable storage was the magnetic drum, a rotating metal cylinder coated with ferromagnetic material, invented in 1932 by the Viennese autodidact Gustav Tauschek, years before any electronic computer existed to use it. The IBM 650 (1954), one of the most widely sold early computers, used a drum as its primary working memory, with a capacity of roughly 2,000 ten-digit numbers.

Before magnetism came holes. The weaver Basile Bouchon controlled a loom with punched paper in 1725, Alexander Bain used perforated tape for telegraphy in the 1840s, and Émile Baudot’s telegraph code of the 1870s put five holes across a strip. Konrad Zuse’s Z3 of 1941 read its program from used 35 mm cinema film, the Harvard Mark I of 1944 from tape with 24 positions. From 1963 eight-hole tape carrying 7-bit ASCII plus a parity bit became the norm, and fast readers such as Regnecentralen’s RC 2000 of 1963 handled 2,000 characters a second. Paper tape lasted into the microcomputer era: Paul Allen flew to MITS in 1975 with Altair BASIC on a roll of it, and from 1966 West German tax advisers mailed their clients’ bookkeeping on punched tape to the DATEV data centre in Nuremberg.

Magnetic recording itself went back to Valdemar Poulsen’s Telegraphon of 1898, which recorded speech on steel wire, and to AEG’s tape-based Magnetophon of 1935. Magnetic tape provided bulk storage for computers from the early 1950s onward. The IBM 726 (1952) wrote 100 characters per inch onto a 1,200-foot half-inch reel, about 1.4 MB. Tape was sequential: to reach record 10,000, the machine had to read past records 1 through 9,999. This constraint fundamentally shaped early database design, batch processing, sorted sequential files, and the entire notion of “runs” in external sorting algorithms were all direct responses to tape’s limitations.

Storage as Architecture

Tape’s sequential constraint was not just an inconvenience; it drove entire paradigms. COBOL’s sequential file model, the batch processing model of 1960s mainframes, and the “sort-merge” pattern of early data processing all reflect software adapting to the physics of spinning reels.

The Hard Disk Drive: Random Access Changes Everything

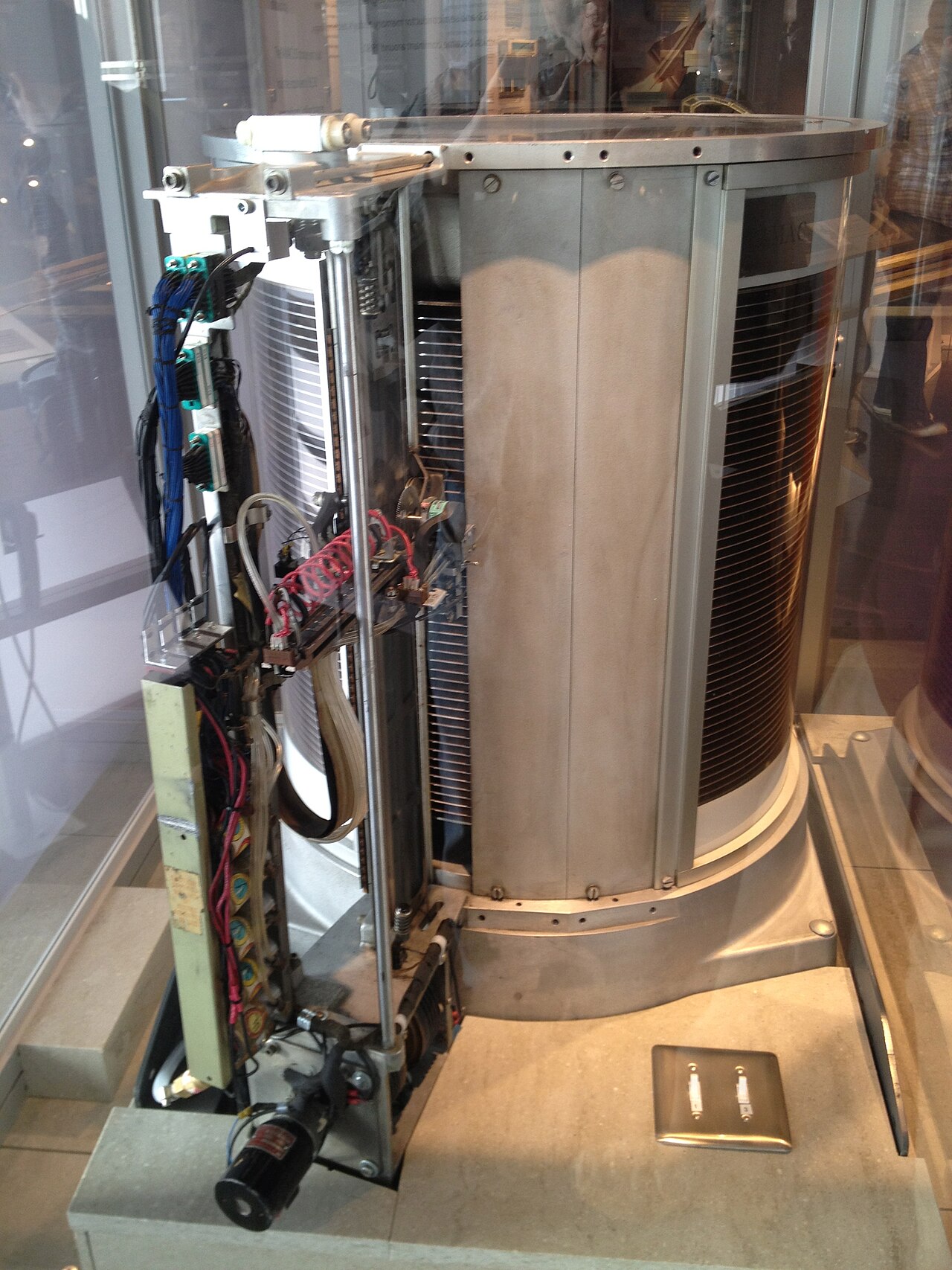

The platter stack and access mechanism of an IBM 350 RAMAC disk unit. Image: ArnoldReinhold, CC BY-SA 3.0, via Wikimedia Commons.

The idea of stacked rotating disks had been patented by Jacob Rabinow of the National Bureau of Standards, who filed in March 1951 with a jukebox in mind. IBM developed its version at a new laboratory in San José, opened in 1952 under Reynold Johnson, and Thomas Watson Jr. announced it on 14 September 1956. In 1956, IBM shipped the IBM 350 RAMAC (Random Access Method of Accounting and Control), the first commercial hard disk drive. It stored 5 MB across 50 spinning 24-inch platters, weighed over a ton, and leased for $3,200 per month. The first civilian customer was the paper company Crown Zellerbach in San Francisco in September 1956; IBM built more than a thousand in five years, and a twin unit stored data for the IBM 650. Its revolutionary property was random access, any record could be reached in under 600 milliseconds without sequential traversal.

The consequences were profound. Random access made relational databases thinkable: Codd’s relational model (1970) assumed that rows in a table could be addressed independently. It made file systems as we know them possible. It made interactive computing economically viable.

The HDD industry scaled through a series of form-factor reductions:

14-inch platters dominated mainframes through the 1960s.
5.25-inch drives entered the PC market with Seagate’s ST-506 (1980, 5 MB, $1,500); the IBM PC/XT (1983) made a 10 MB drive standard equipment.
3.5-inch drives became standard by the late 1980s, led by Seagate and Western Digital.
2.5-inch drives powered laptops through the 2000s.

By 2010, a 1 TB 3.5-inch drive cost under $100, a price-per-byte reduction of roughly 50 million times since the RAMAC.

The march toward smaller platters saw one notable counter-move: Quantum’s Bigfoot series (1996–1999) revived the 5.25-inch format to deliver more capacity per dollar for budget PCs, and it shipped in consumer machines from Compaq, HP, and IBM. But physics doomed the throwback, larger platters flex under centrifugal force at high rotation speeds, capping the original Bigfoot at 3,600 RPM and roughly 813 KB/s of throughput while 3.5-inch rivals already delivered around 1,170 KB/s. As areal density gains let small platters match Bigfoot’s capacity at lower cost and higher speed, Quantum discontinued the line in late 1999. The lesson stuck: areal density, not platter size, drives storage economics, no manufacturer has attempted a larger form factor since.

The Areal Density Arms Race

HDD capacity growth was driven by areal density, the number of bits per square inch of platter surface. Key innovations:

Thin-film heads (1979) replaced ferrite-core heads, enabling finer track widths.
Magneto-resistive (MR) heads (IBM, 1991) read via resistance change rather than induction, enabling much smaller track widths.
Giant Magneto-Resistance (GMR) heads (1997, commercialized from Albert Fert and Peter Grünberg’s Nobel Prize-winning research) enabled another order-of-magnitude density jump.
Perpendicular recording (first commercial drive: Toshiba, 2005; Seagate converted its lineup from 2006) oriented magnetic domains vertically rather than horizontally, allowing continued scaling past the superparamagnetic limit.

The Floppy Disk: Portability Over Capacity

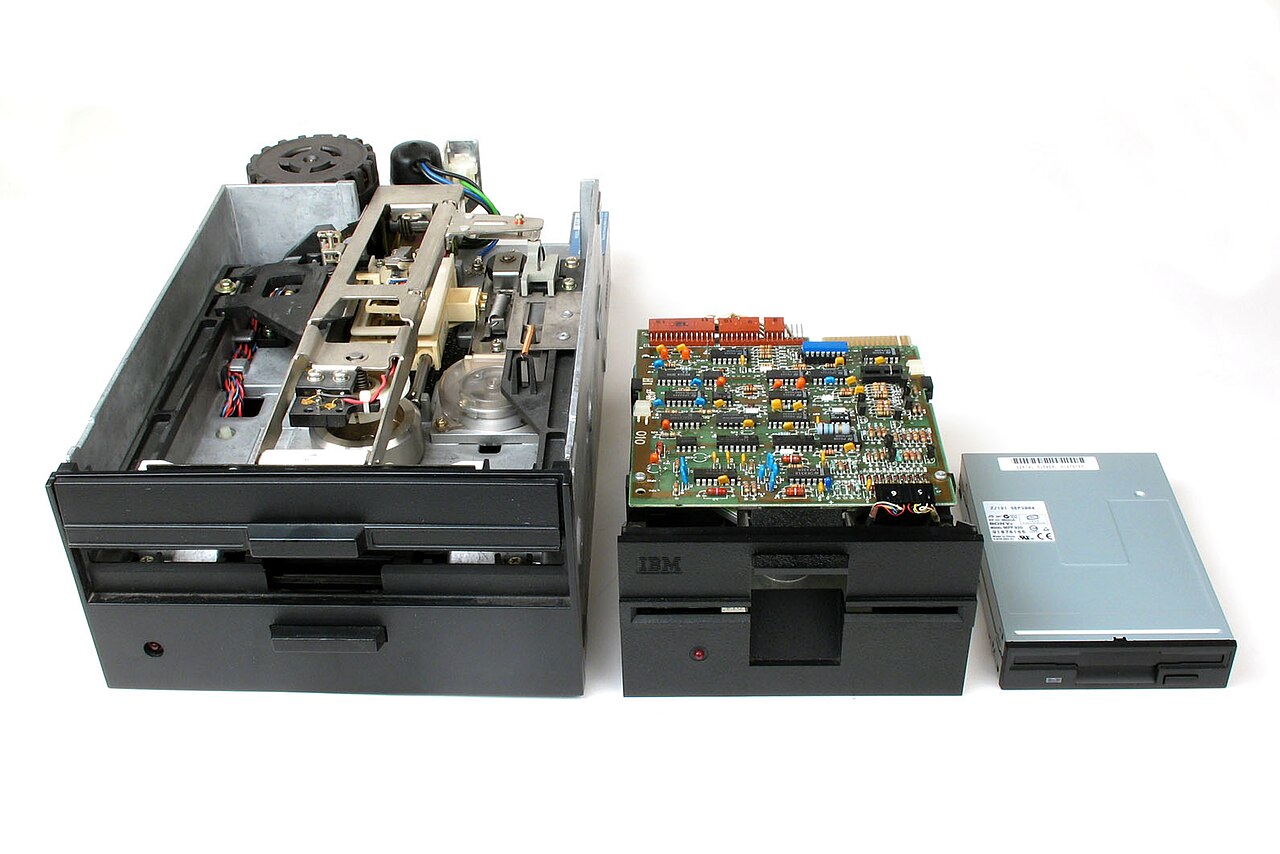

8-inch, 5.25-inch and 3.5-inch floppy disk drives side by side. Image: Michael Holley (Swtpc6800), public domain, via Wikimedia Commons.

The floppy disk, developed at IBM from 1967 by a team under Alan Shugart (the engineer David Noble is credited with the disk itself) and commercialized in 1971 as a read-only program loader for the System/370, solved a different problem: removability. The original 8-inch floppy held 80 KB (read-only); the 5.25-inch format (Shugart Associates, 1976) started below 90 KB and reached its ubiquitous DOS-era 360 KB by the early 1980s; the Sony-developed 3.5-inch format held 1.44 MB in its final standard incarnation, shipping from 1987.

Shugart moved to Memorex, which sold the first writable floppy drive in 1972, and founded Shugart Associates in 1973; its 5.25-inch “minifloppy” of 1976 was suggested by An Wang. Sony announced the 3.5-inch microfloppy in December 1980 for its Series 35 word processor and showed it at the National Computer Conference in Chicago in May 1981; the high-density 1.44 MB version followed in 1987, 3.5-inch disks outsold 5.25-inch ones from 1988, and some five billion were sold a year in the 1990s. The floppy’s importance was never capacity; it was the ability to walk software from one machine to another. Software distribution, backups, and the entire shareware industry depended on it. The floppy drive outlasted its usefulness by a decade because it was a universal interoperability standard, not because the technology was competitive.

Working Memory: From Cores to DRAM

Persistent storage had a twin problem: fast working memory. After mercury delay lines, cathode-ray tubes and drums, the magnetic core won. J. Presper Eckert suggested ferromagnetic rings in 1945; Frederick Viehe, a Los Angeles city employee and amateur electronics inventor, filed a core-memory patent on 29 May 1947; An Wang and Way Dong Woo at Harvard described a core-based delay memory in September 1949 that went into the Harvard Mark IV in 1952. On 14 June 1949 Jay Forrester at MIT wrote the memo that described the practical form, cores threaded on wires in a three-dimensional array, which went into Whirlwind; Jan Rajchman built his own at RCA in 1952, pressing cores on a converted aspirin press. The suitable magnetic materials had German roots, the nickel-iron alloy Permenorm 5000 Z (made under licence in the US as Deltamax) and a ferrite developed by the émigré chemist Ernst Albers-Schönberg. IBM settled the patent tangle by paying An Wang $500,000, reportedly a million to Viehe, and $13 million to MIT in 1964.

The core’s successor came from IBM’s research centre. In 1966 Robert Dennard conceived a memory cell of one transistor and one capacitor; he filed the patent on 14 July 1967, and it was granted on 4 June 1968. The first commercial DRAM, Intel’s 1103 of 1970, still used three transistors per cell. The race to the one-megabit chip became a symbol of 1980s industrial policy: Asian manufacturers held 85 percent of the market for standard 256-kilobit chips, IBM announced production of megabit chips at Böblingen and Burlington on 18 April 1986, Siemens began making them in Regensburg in 1987 with Toshiba’s know-how, and on 12 September 1988 Carl Zeiss Jena presented Erich Honecker with a working East German megabit chip, the U61000, of which some 35,000 were made before the Wall fell. The unit in which all this is counted came from IBM too: Werner Buchholz, born in Detmold in 1922, coined the word byte in a Stretch project memo of 11 June 1956, and the System/360 fixed it at eight bits in 1964.

Bubble memory was the road not taken. Invented by Andrew Bobeck at Bell Labs, it moved tiny magnetic domains across a crystal and was backed in the 1970s by AT&T, Texas Instruments, Intel and Siemens. It reached a few products, among them Sharp’s PC-5000 laptop of November 1983, before falling hard-disk prices ended it.

The Flash Revolution: No Moving Parts

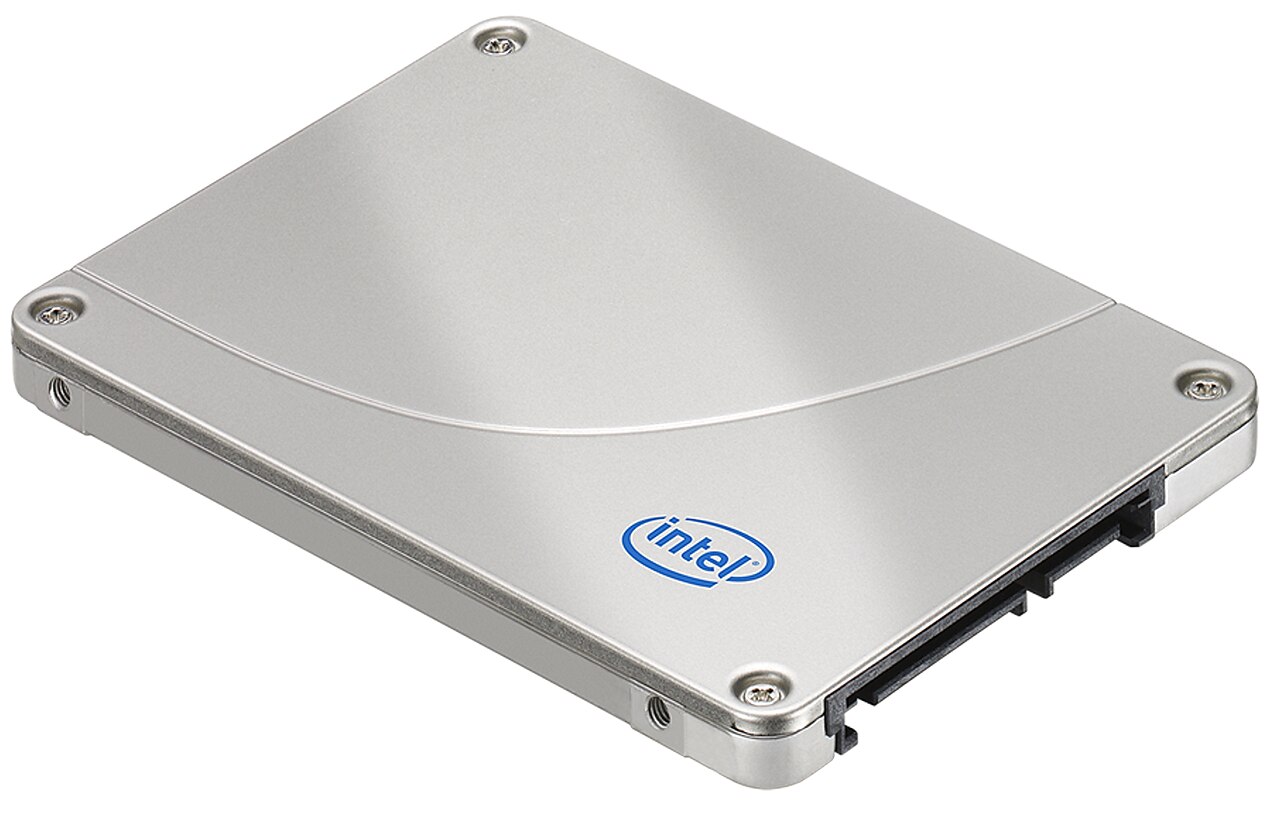

Intel X25-M solid-state drive (2008). Image: Intel Free Press, CC BY 2.0, via Wikimedia Commons.

Flash memory (non-volatile storage using floating-gate transistors) was invented by Fujio Masuoka at Toshiba in 1980 and commercialized by Intel in 1988. Its initial applications were embedded systems and early digital cameras. The critical transition came with two developments:

USB flash drives (2000): Trek Technology’s ThumbDrive and IBM’s DiskOnKey shipped almost simultaneously. The Israeli firm M-Systems (Amir Ban, Oron Ogdan and Dov Moran) had filed a patent for a USB flash disk on 5 April 1999 and an IBM researcher another that September; Trek showed its ThumbDrive at CeBIT 2000, and IBM announced its 8 MB USB Memory Key, made by M-Systems, on 14 November 2000 for $49. A device the size of a thumb that held 8 MB, plugged into any computer, and on current operating systems needed no special driver; it killed the floppy market within five years.
NAND flash density scaling: As NAND flash moved from single-level cell (SLC, 1 bit per cell) to multi-level cell (MLC, 2 bits) and triple-level cell (TLC, 3 bits), cost per gigabyte fell far enough that SSDs displaced HDDs across mainstream laptops by the mid-2010s.

The SSD Takes Over

The Solid State Drive arrived in its modern form with Samsung’s 32 GB SSD (2006) and gained mainstream traction with Intel’s X25-M (2008), which delivered 250 MB/s sequential reads, about twice as fast as contemporary desktop HDDs for sequential access and around 100 times faster for random 4K reads. Laptop and then desktop computing shifted decisively to SSDs through the 2010s.

NVMe (Non-Volatile Memory Express, specification 2011) replaced the SATA interface designed for spinning disks with one designed for flash, eliminating the protocol overhead of AHCI/SATA. An NVMe SSD over PCIe 4.0 delivers 7 GB/s sequential reads; the original RAMAC delivered its five megabytes at a few kilobytes per second.

The Latency Cliff

The gap between DRAM (nanoseconds), NVMe SSD (microseconds), and HDD (milliseconds) is not linear; it is orders of magnitude. Database engines, operating system page caches, and programming language runtimes are all deeply shaped by this hierarchy. Optane (Intel’s 3D XPoint technology) briefly promised to fill the DRAM/SSD gap with byte-addressable persistent memory, but was discontinued in 2022 due to market failure.

Dead End: Optical Storage as Primary Medium

CD-ROM (1985), DVD (1997), and Blu-ray (2006) achieved mass distribution of software and media but failed to displace magnetic storage as primary working storage. Optical drives are read-mostly (writable variants are slower and more expensive), seek times are high, and physical media requires manual handling. The industry’s bet that optical storage would become the universal medium for both distribution and backup did not survive the combination of broadband internet (for distribution) and cheap HDD/SSD (for backup). The format war fought over the last optical generation is covered in Dead End: HD DVD.

Iomega’s Zip drive (1994) represents a parallel failure: a 100 MB removable magnetic cartridge that commanded the late-1990s backup market, then collapsed within a few years as CD writers became cheap around 2000. The Zip’s proprietary format offered no path to the open standards that USB flash drives and cloud storage would later provide. It also suffered a self-inflicted wound: a head-misalignment fault that users named the “Click of Death,” in which a bad drive could scar a cartridge that then damaged the next drive. See the Click of Death.

Legacy: Storage Assumptions Embedded in Software

Every generation of storage has left sediment in software architecture. The assumption that disk writes are slow explains the persistence of write-ahead logs, B-trees, and LSM-trees. The assumption that HDDs have seek time explains why database row sizes matter. The shift to NVMe is slowly forcing a rethink: RocksDB, io_uring, and storage-class memory architectures are all attempts to take advantage of flash characteristics that traditional I/O stacks were not designed for.

Storage evolution is not just hardware history; it is the hidden variable behind half a century of systems software design.
